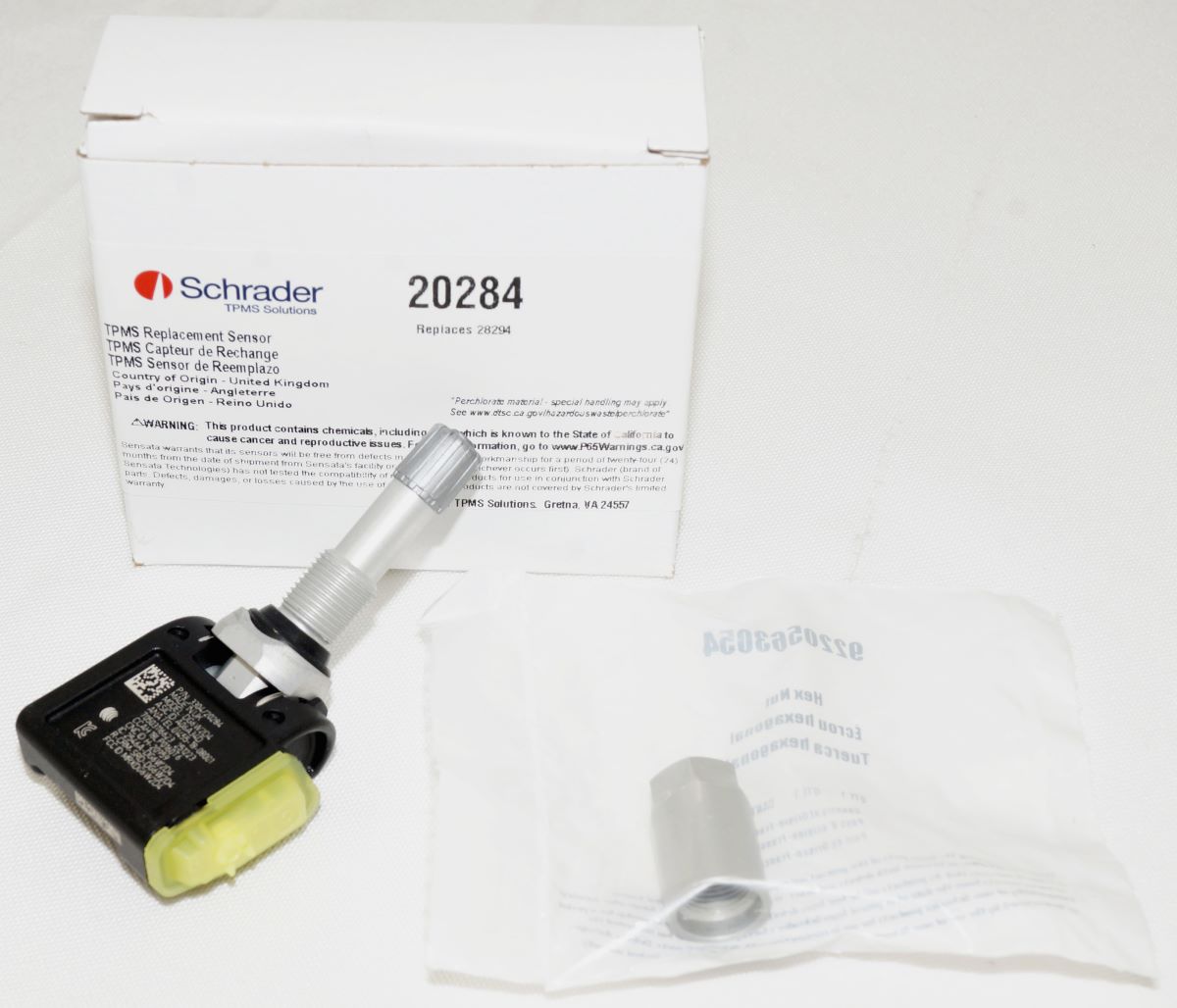

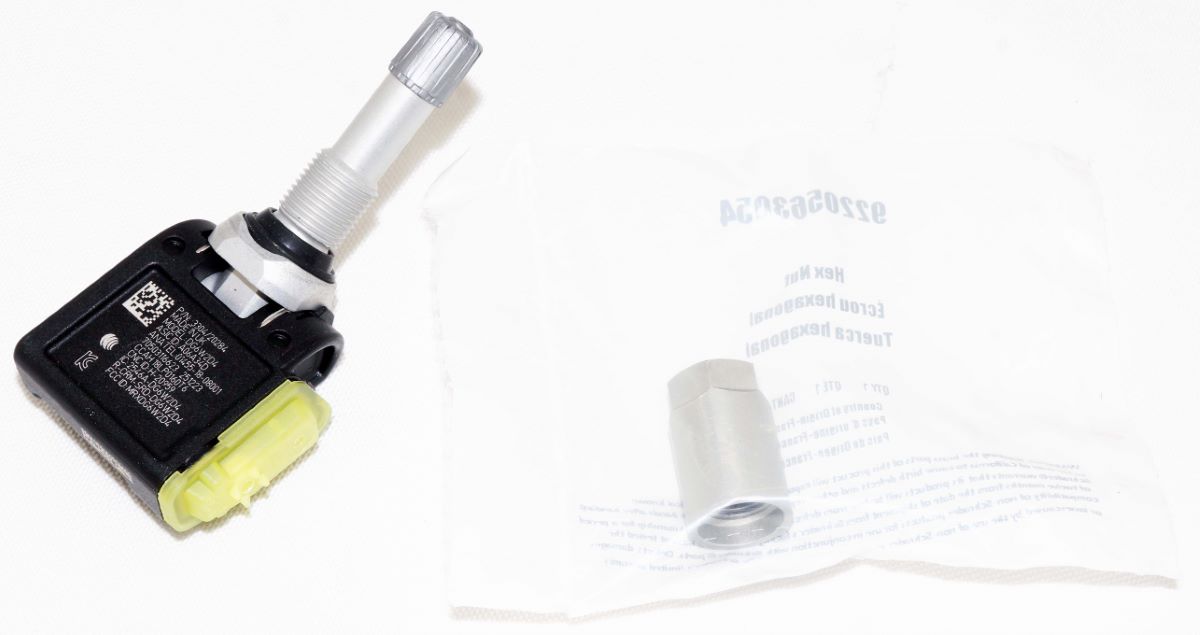

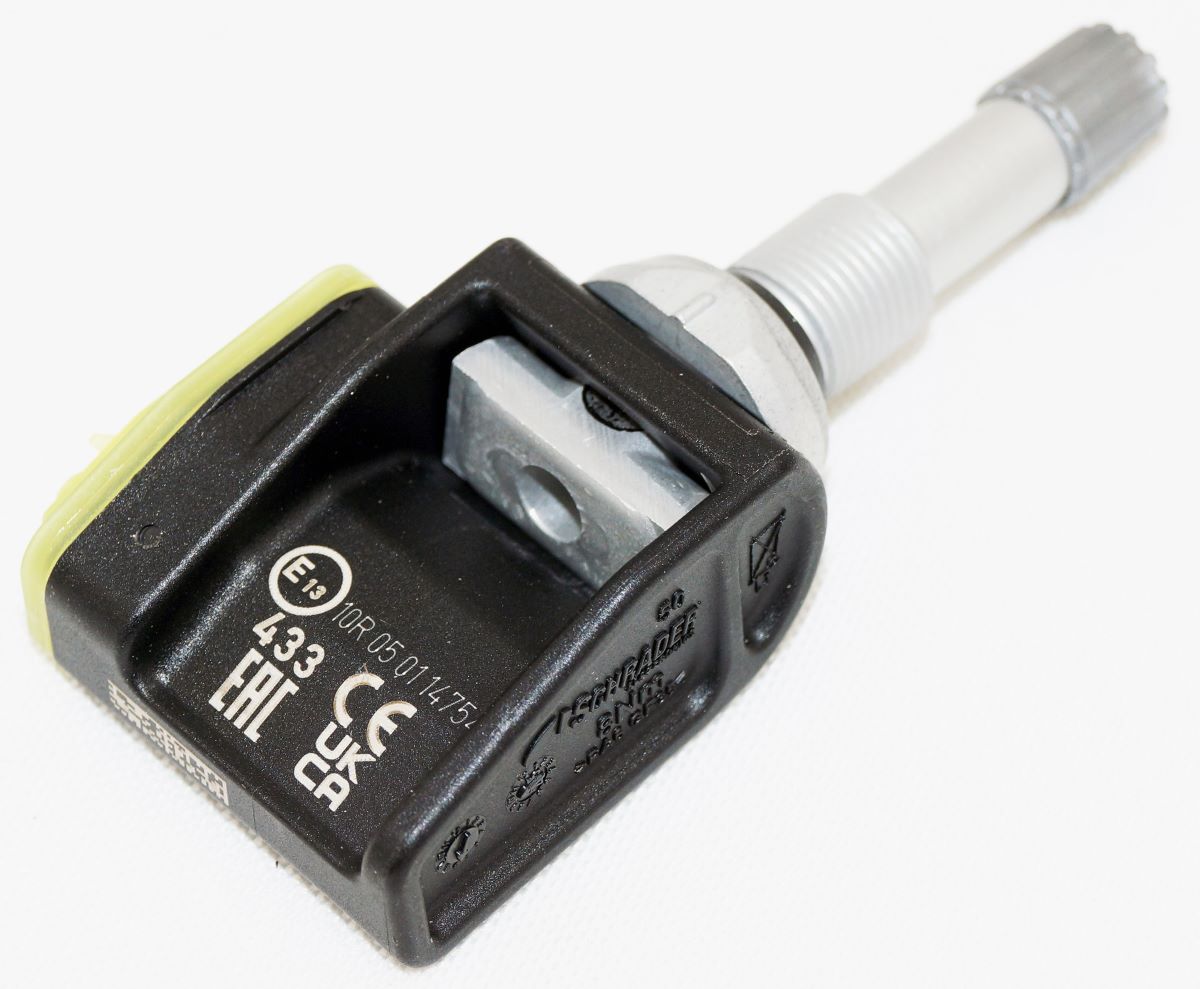

Schrader 20284 Clamp-in TPMS Sensor for Chrysler/Fiat (433MHz)

Part No.: 20284
Commercial Name: Schrader Clamp-in sensor for Chrysler/Fiat
OEM Sensor P/N: 05154876AA
EZ-sensor® coverage: YES
EAN Code: 5054208001364

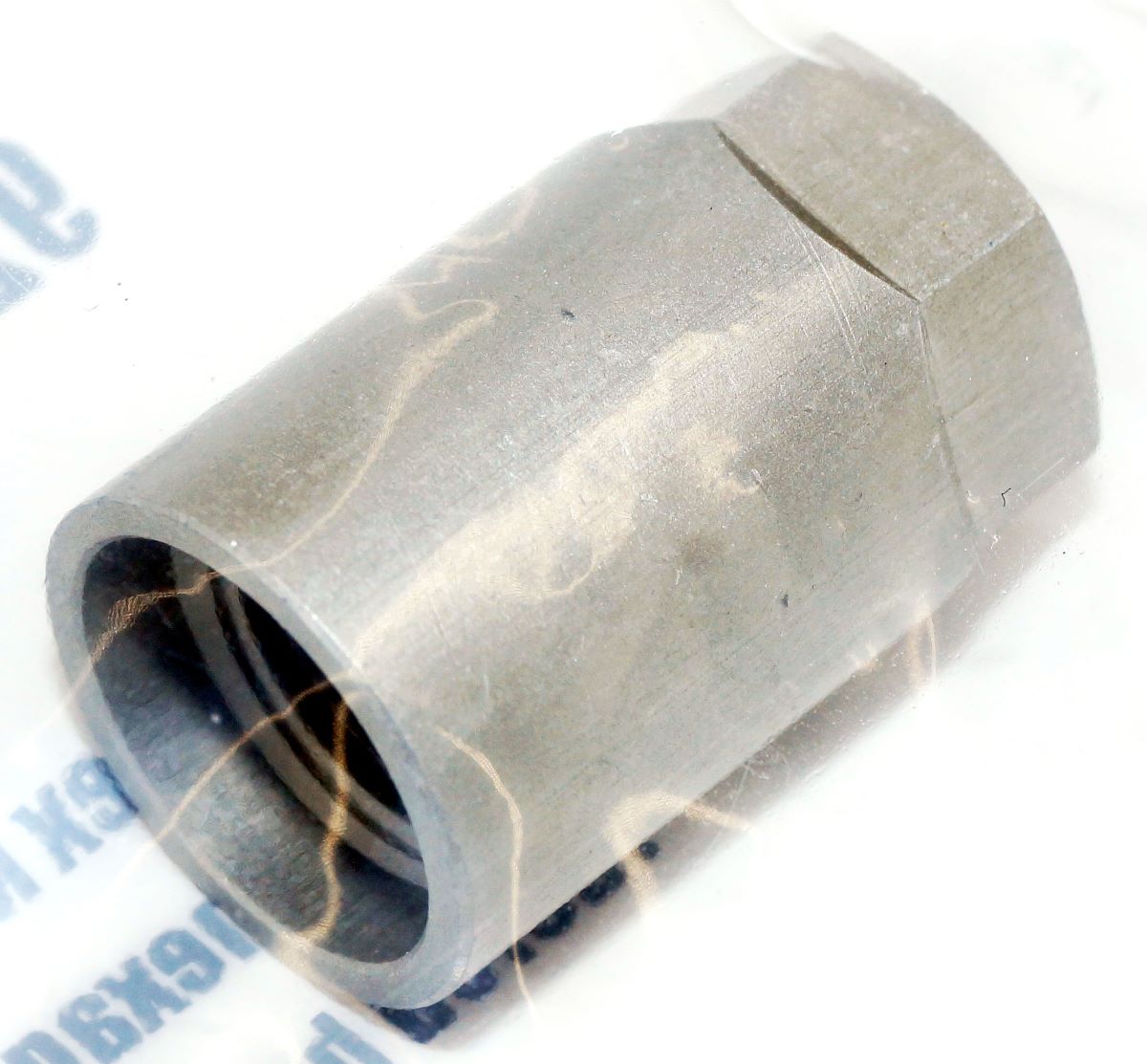

Nut Torque: 71 in-lbs (8 Nm) Nm
Screw Torque: -- Nm
Valve Core Torque: 3.5 in-lbs (0.4 Nm) Nm

Service Kit: 20049

Relearn Summary: Auto Relearn

NOTE: On Ram 3500DRW, inner rear wheels must stay at the inner positions.
They can change sides, but must remain on the inside wheel positions.
Ensure all tires are inflated to the pressure listed on the tire placard.
Vehicle must be driven for at least 10 minutes while maintaining speed above 15mph in order for system to learn new sensor IDs.
