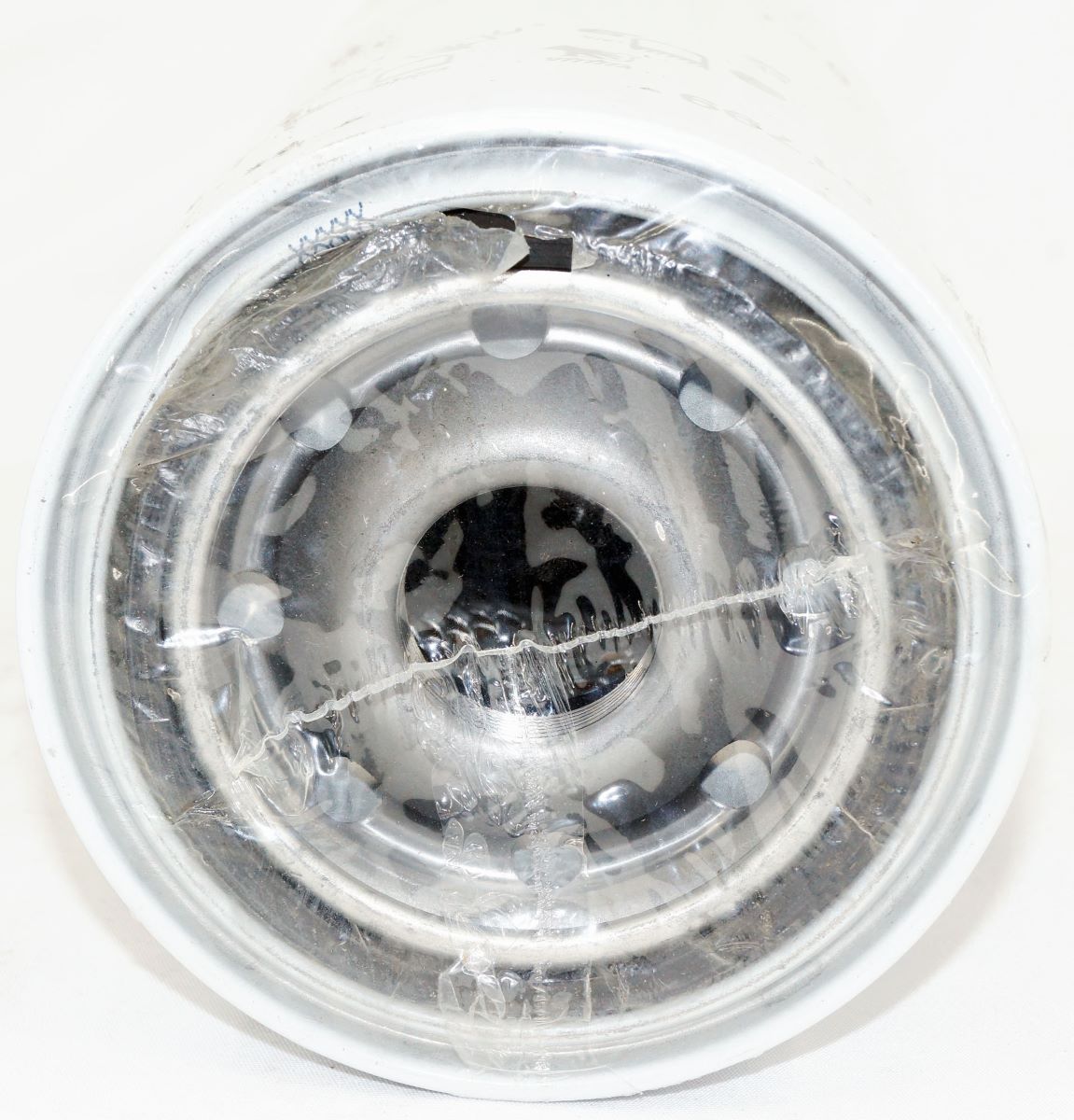

Wix 51799 Spin-On Lube Filter - Master Pack version

Type: Full Flow
Media: Enhanced Cellulose
Height: 12.184(309)*
Outer Diameter Top: 5.342(136)*
Outer Diameter Bottom: Closed:
Thread Size: 36X1.5 MM
By-Pass Valve Setting-PSI: 31
Beta Ratio: 2/20=16/33
Burst Pressure-PSI: 400
Max Flow Rate: 24-28 GPM
Nominal Micron Rating: 19

Gasket Diameters
Number O.D. I.D. Thk.
Attached 4.32 (110)* 3.82 (97)* 0.365 (9)*
