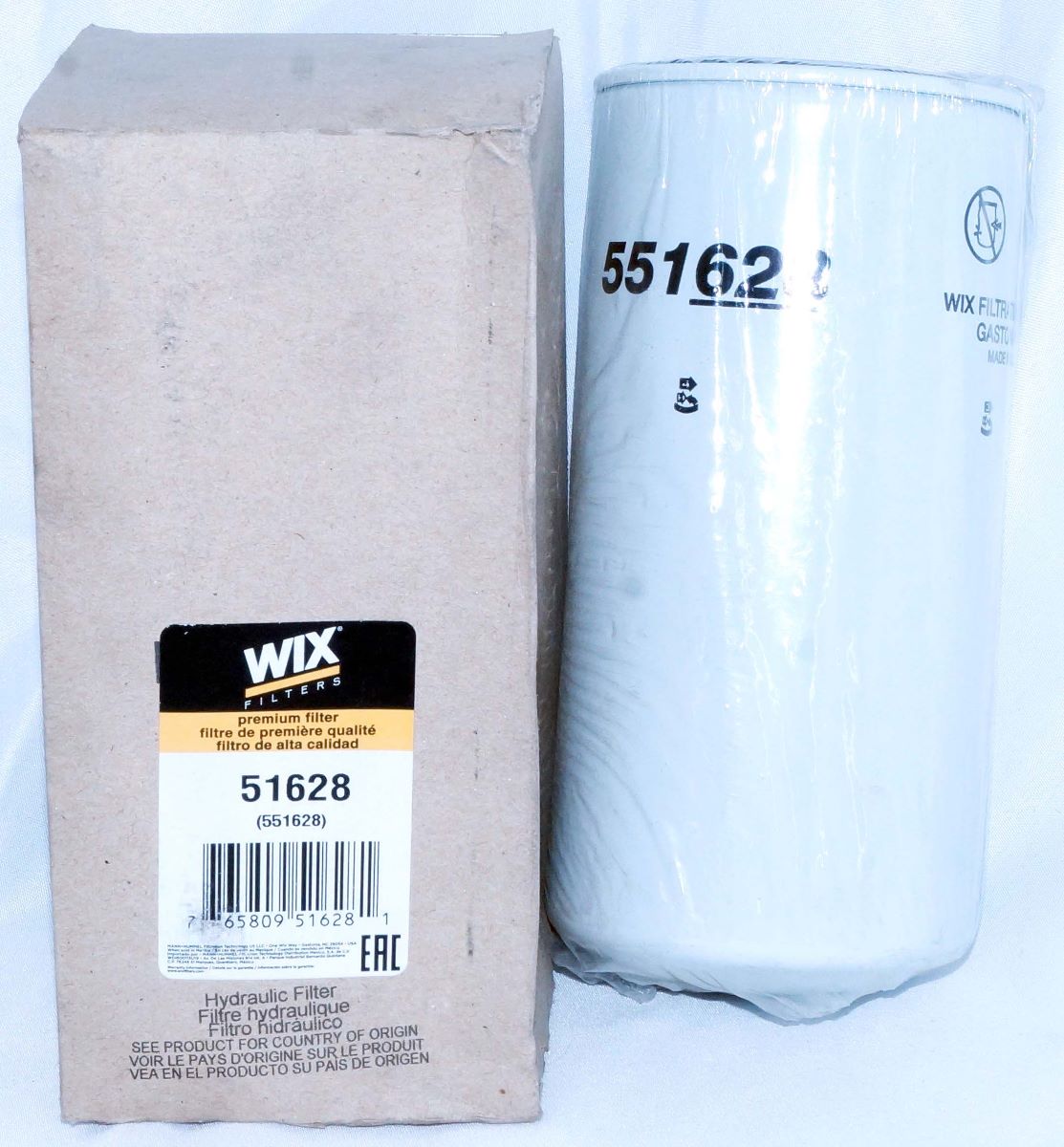

Wix 51628 Spin-On Hydraulic Filter for Excel John Deere Melroe Bobcat

Type: Full Flow
Media: Enhanced Cellulose
Height: 7.827(199)*
Outer Diameter Top: 3.735(95)*
Outer Diameter Bottom: Closed:
Thread Size: 1-12
By-Pass Valve Setting-PSI: None
Beta Ratio: 2/20=17/32
Burst Pressure-PSI: 345
Max Flow Rate: 12-16 GPM
Nominal Micron Rating: 10

Gasket Diameters
Number O.D. I.D. Thk.
Attached 2.834 (72)* 2.462 (63)* 0.275 (7)*
