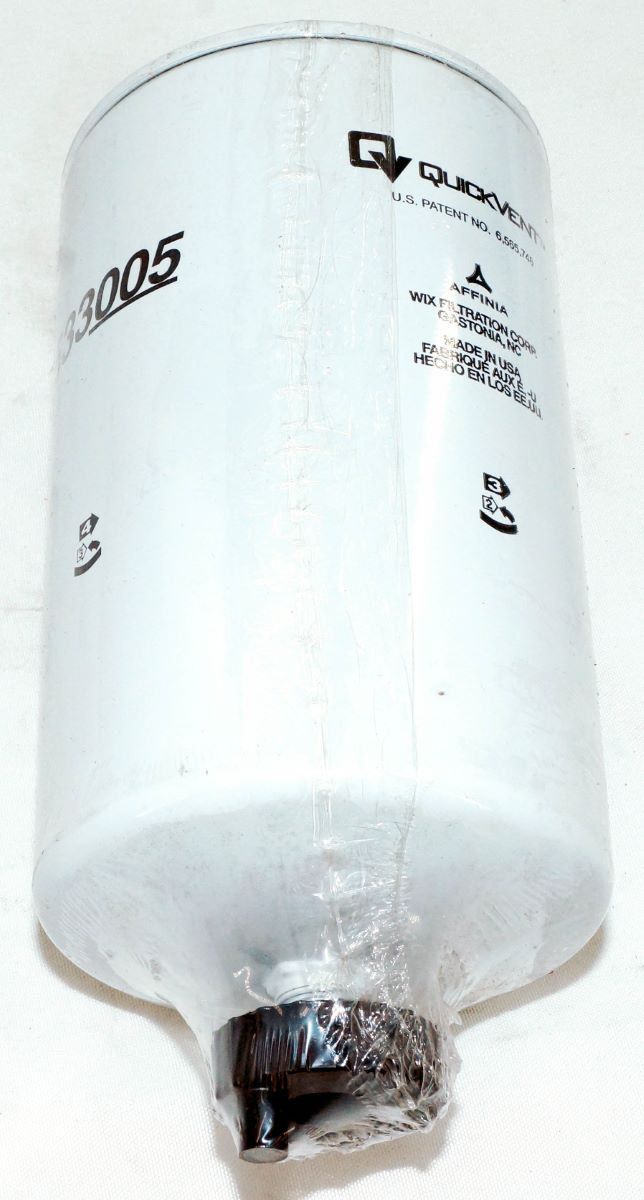

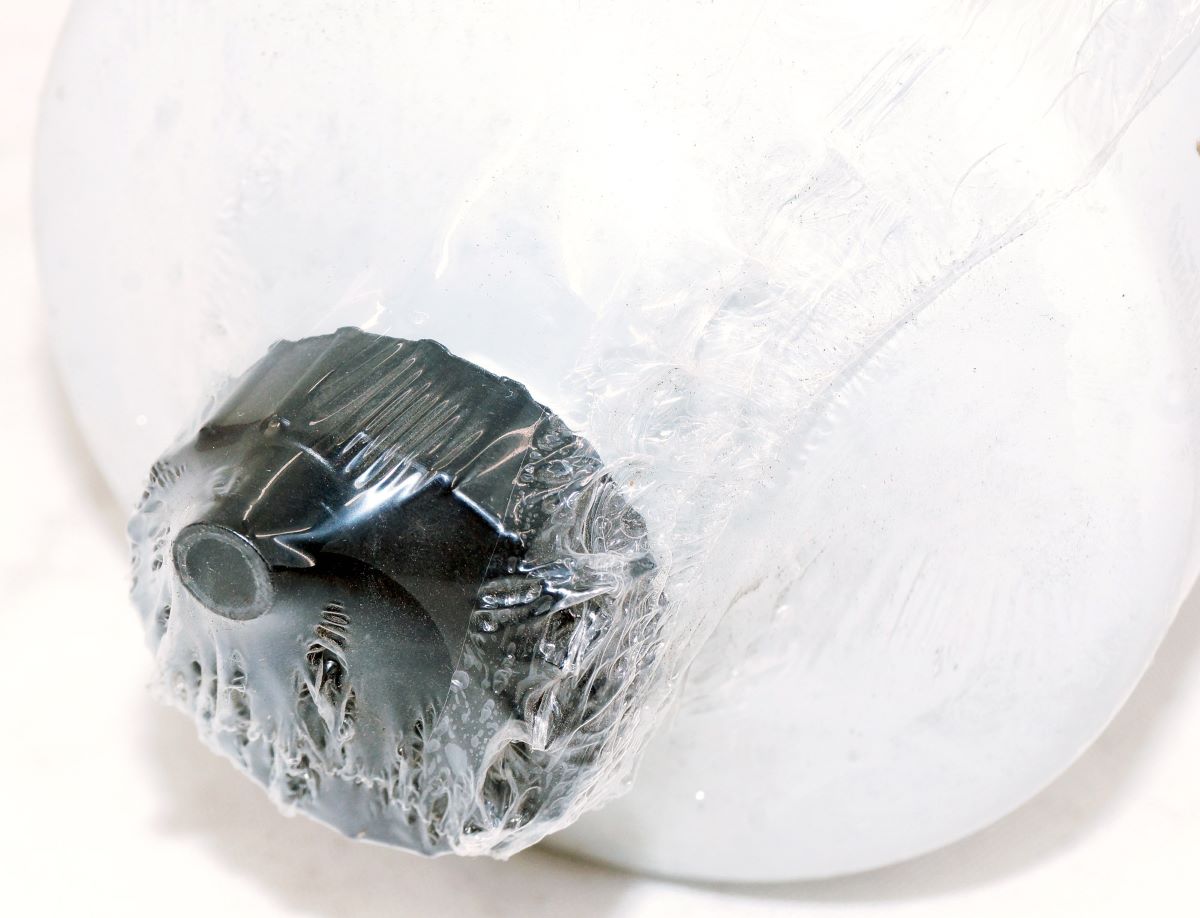

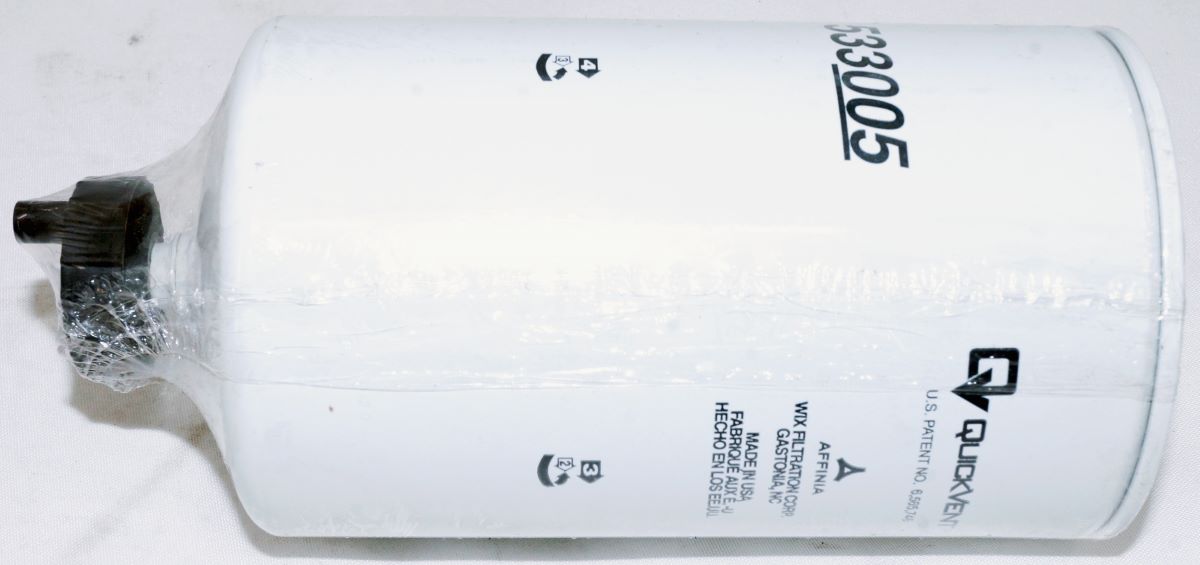

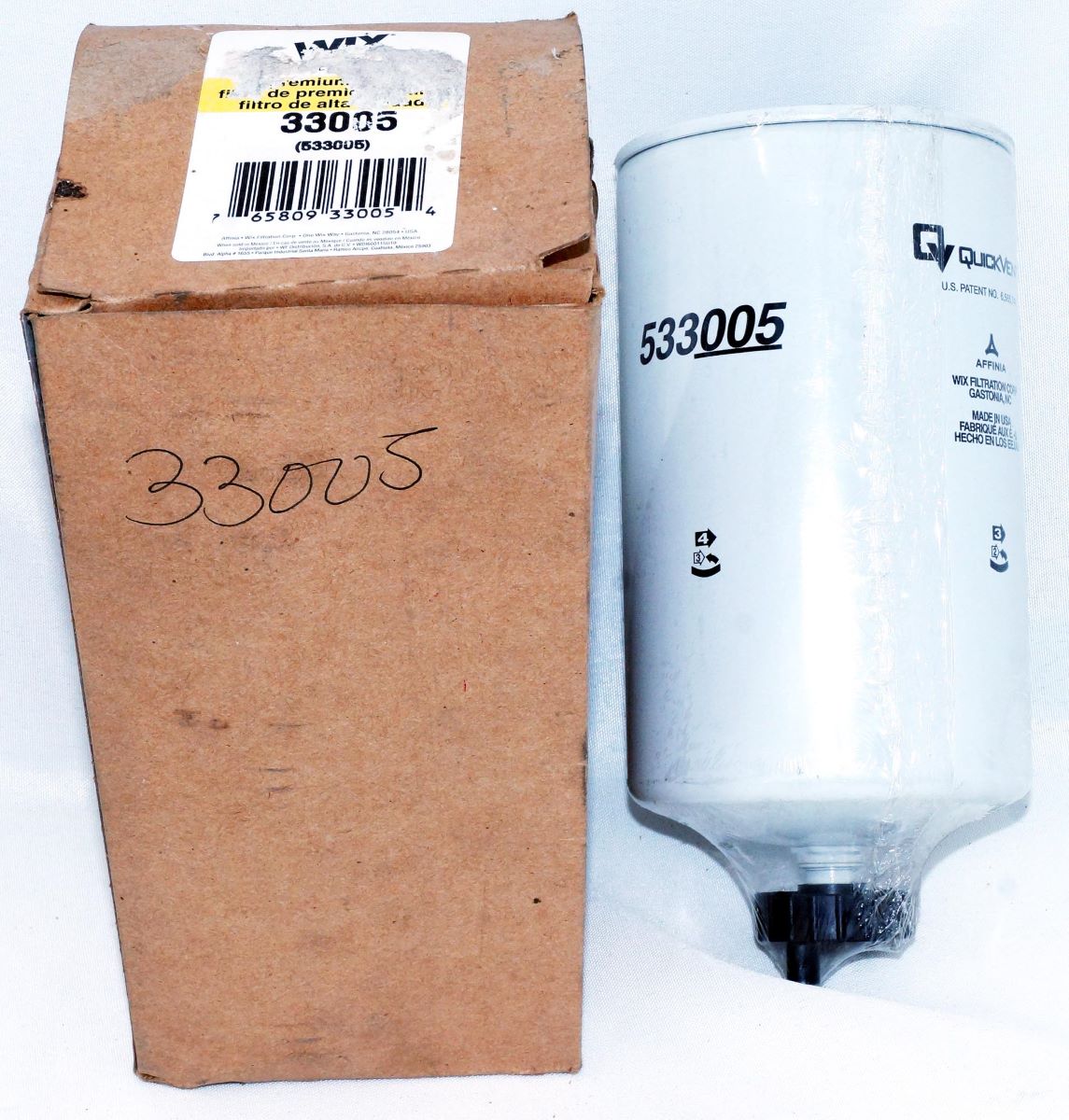

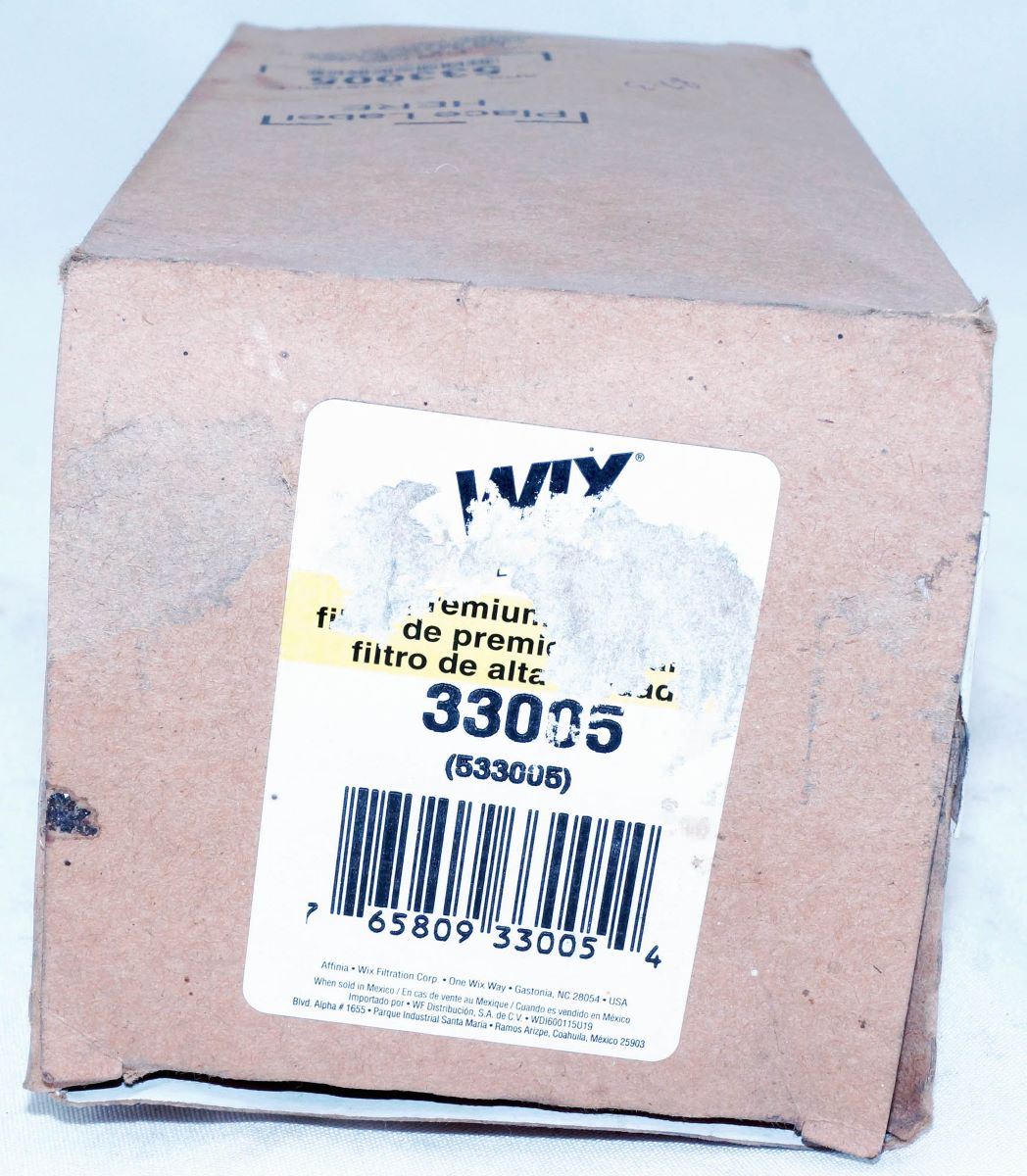

Wix 33005-WIX Spin-On Fuel/Water Separator Filter for Caterpillar

Type: Full Flow
Media: Enhanced Cellulose
Height: 7.389(188)*
Outer Diameter Top: 3.69(94)*
Outer Diameter Bottom: Closed:
Thread Size: 1-14
Beta Ratio: 2/75=3/9
Burst Pressure-PSI: 150
Max Flow Rate: 12-15 GPM
Nominal Micron Rating: 3

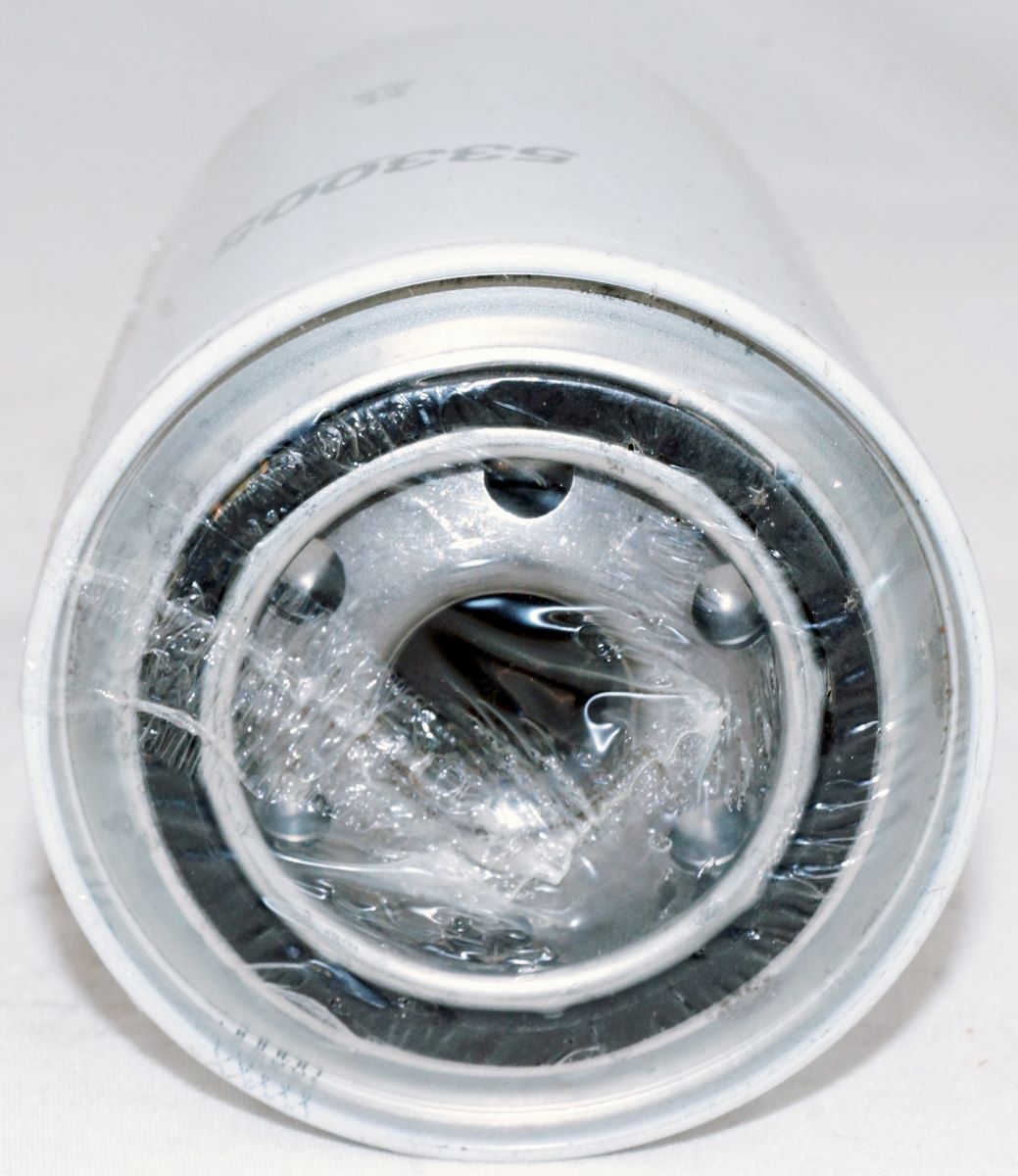

Gasket Diameters
Number O.D. I.D. Thk.
Attached 2.810 (71)* 2.460 (62)* 0.203 (5)*
