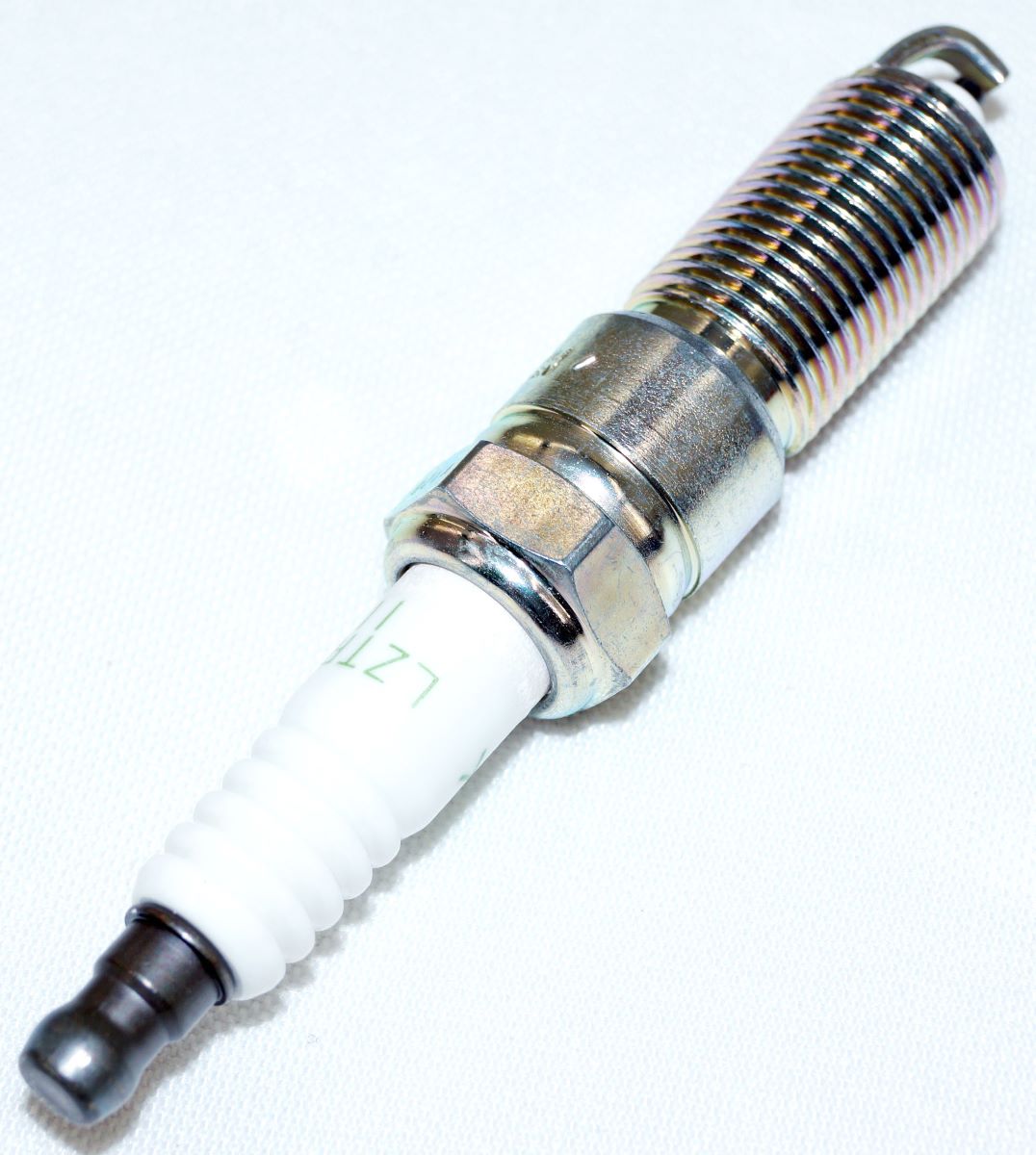

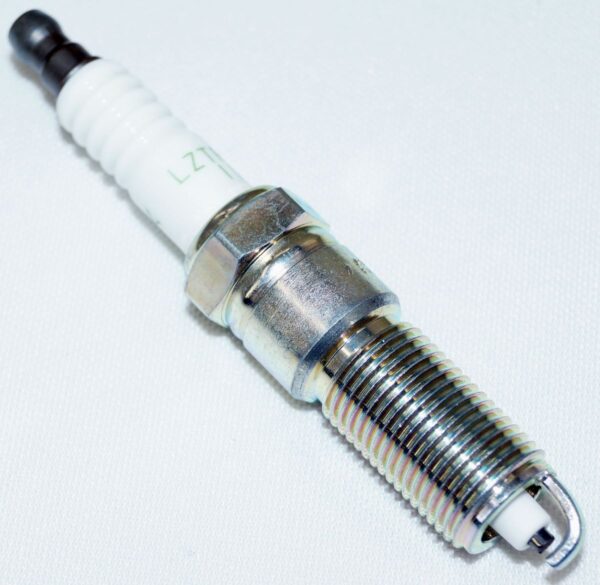

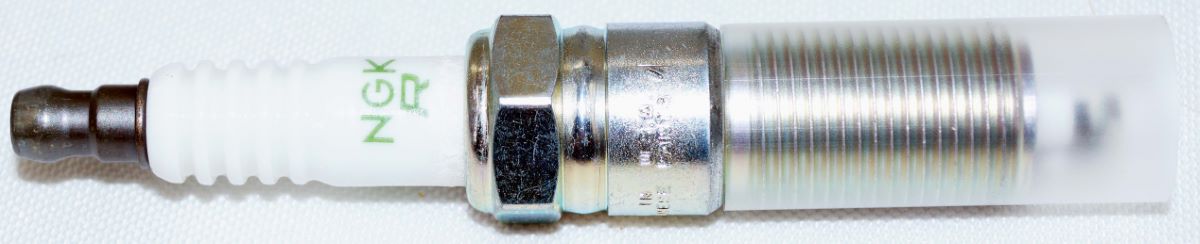

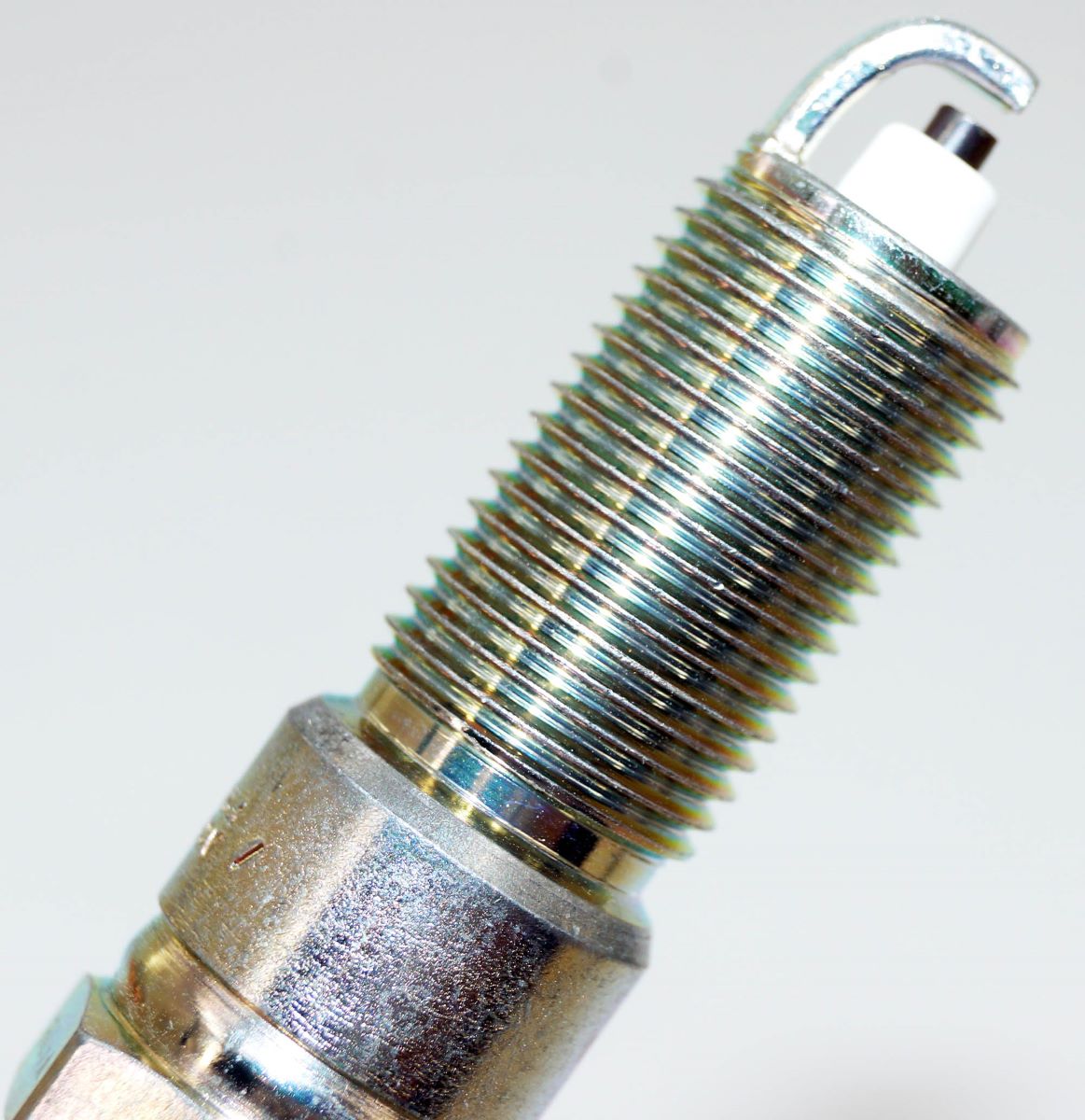

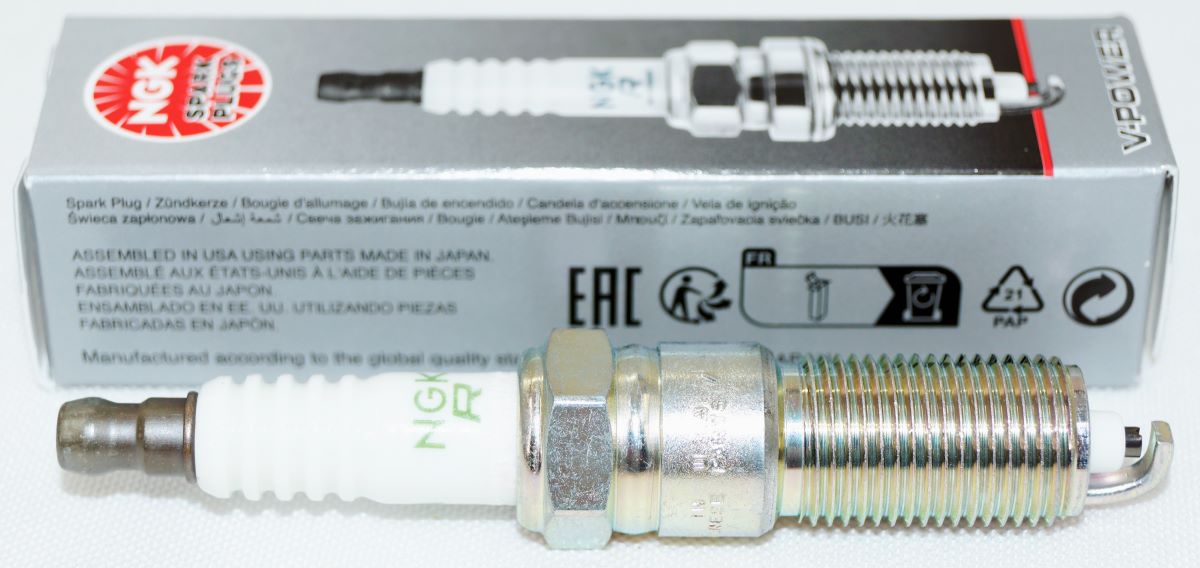

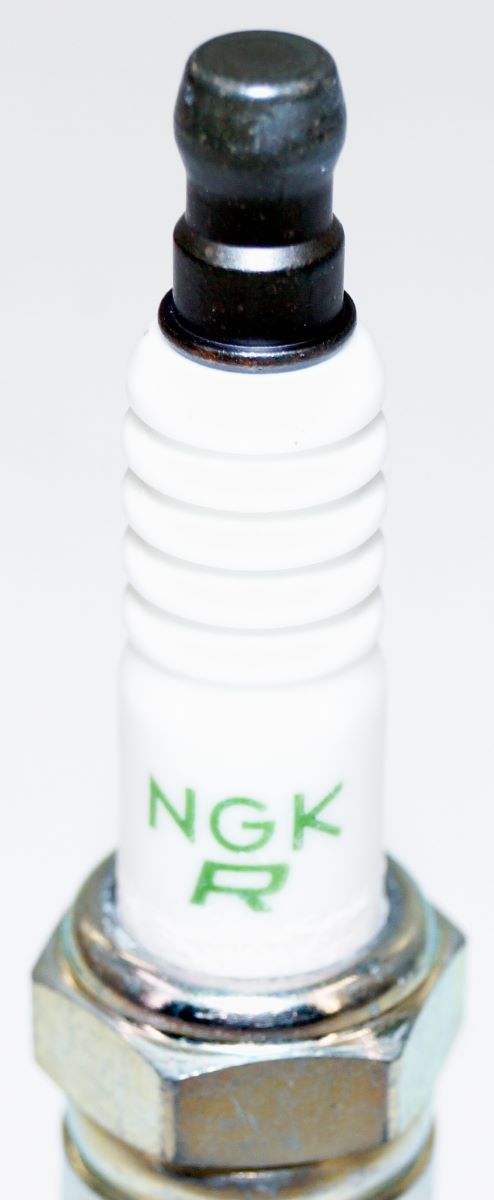

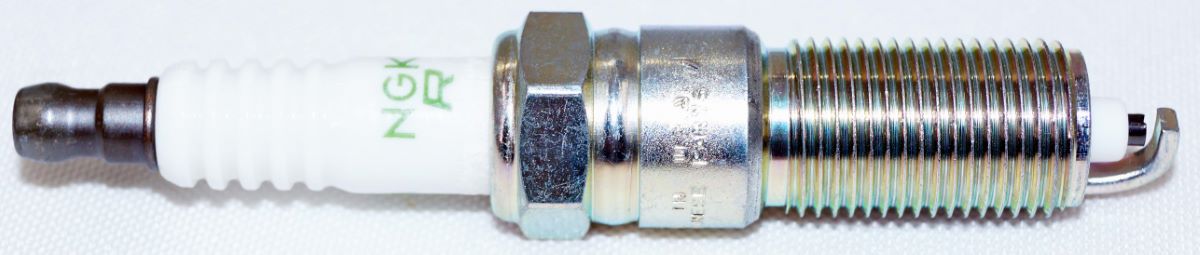

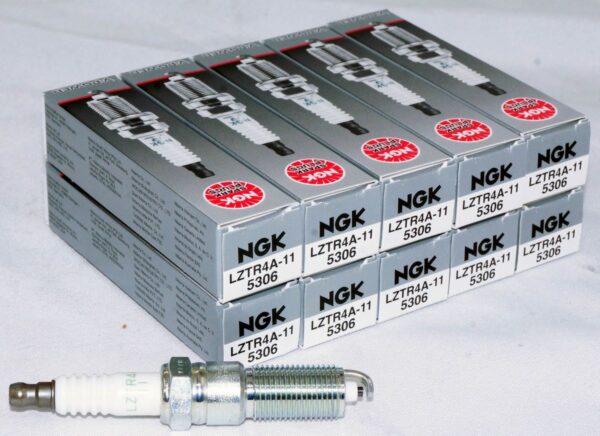

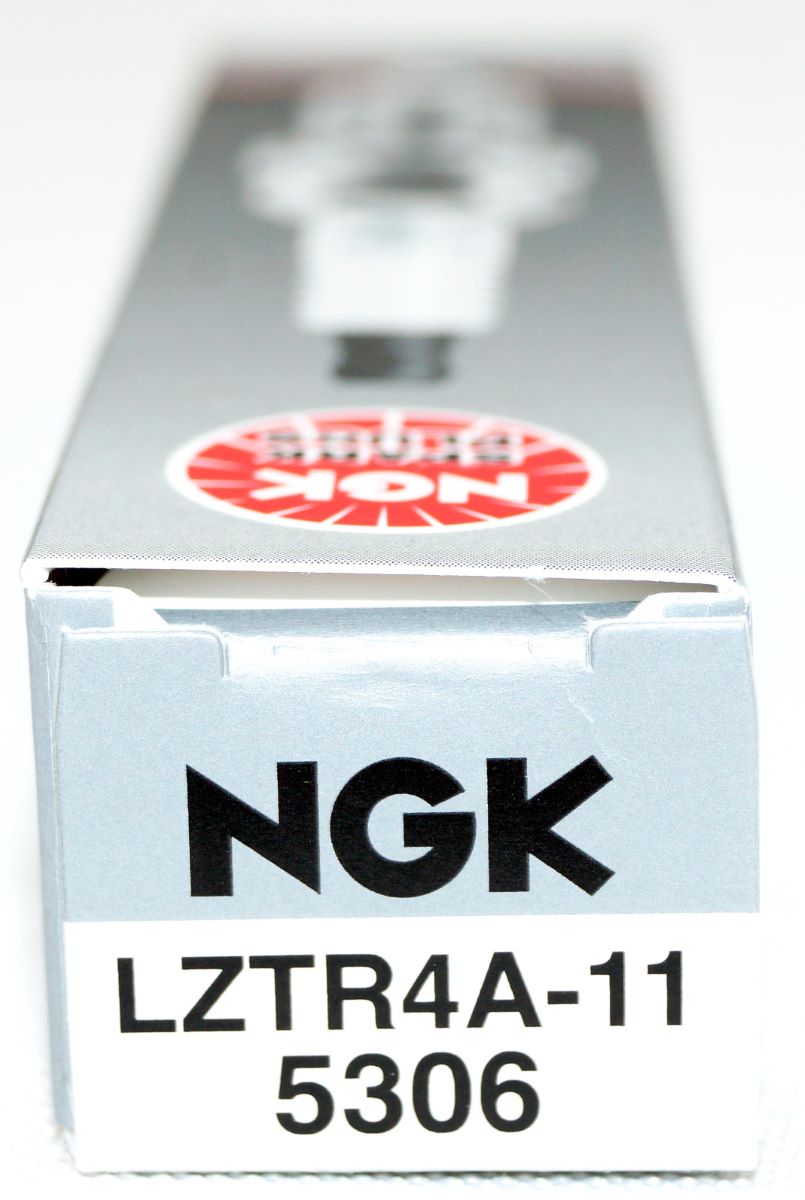

Set of 10 NGK 5306 LZTR4A-11 V-Power Spark Plugs

Set of 10 NGK 5306 LZTR4A-11 V-Power Spark Plugs

Set of 10 NGK 5306 LZTR4A-11 V-Power Spark Plugs - Image 2

Set of 10 NGK 5306 LZTR4A-11 V-Power Spark Plugs - Image 3

Set of 10 NGK 5306 LZTR4A-11 V-Power Spark Plugs - Image 4

Set of 10 NGK 5306 LZTR4A-11 V-Power Spark Plugs - Image 5

Set of 10 NGK 5306 LZTR4A-11 V-Power Spark Plugs - Image 6

Set of 10 NGK 5306 LZTR4A-11 V-Power Spark Plugs - Image 7

Set of 10 NGK 5306 LZTR4A-11 V-Power Spark Plugs - Image 8

Set of 10 NGK 5306 LZTR4A-11 V-Power Spark Plugs - Image 9

Set of 10 NGK 5306 LZTR4A-11 V-Power Spark Plugs - Image 10

$37.14

10 in stock

Shell

Thread Diameter: 14mm
Thread Pitch: 1.25mm
Seat Type: Tapered
Reach: 25mm (1")
Hex Size: 5/8" (16mm)
Terminal Type: Solid
Overall Height: ISO
Gap: .043" (1.1mm)

Center Electrode

Material: Nickel
Type: V-Cut
Size: 2.5mm
Projection: Extended Projection

Ground Electrode

Material: Nickel
Type: Standard

Specifications

Resistor: Yes
Resistor Value: 5k Ohm
Heat Range: 4
Torque Specs: Cast Iron: 10.8-18 lb. ft. Aluminum: 7.2-14.5 lb. ft.

Condition:
Brand: Brand: NGK
SKU SKU: 5306-10K
Mfg Part #: LZTR4A-11

Description

NGK V-Power plugs feature a unique v-cut in the center electrode that directs the spark to the edge of the electrode, helping the spark develop more rapidly, increasing ignitability and reducing quenching.

Trivalent metal plating provides superior anti-corrosion and anti-seizing properties

Corrugated ribs prevent flashover

Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer

Copper core aids in heat removal

Triple seals prevent leakage
