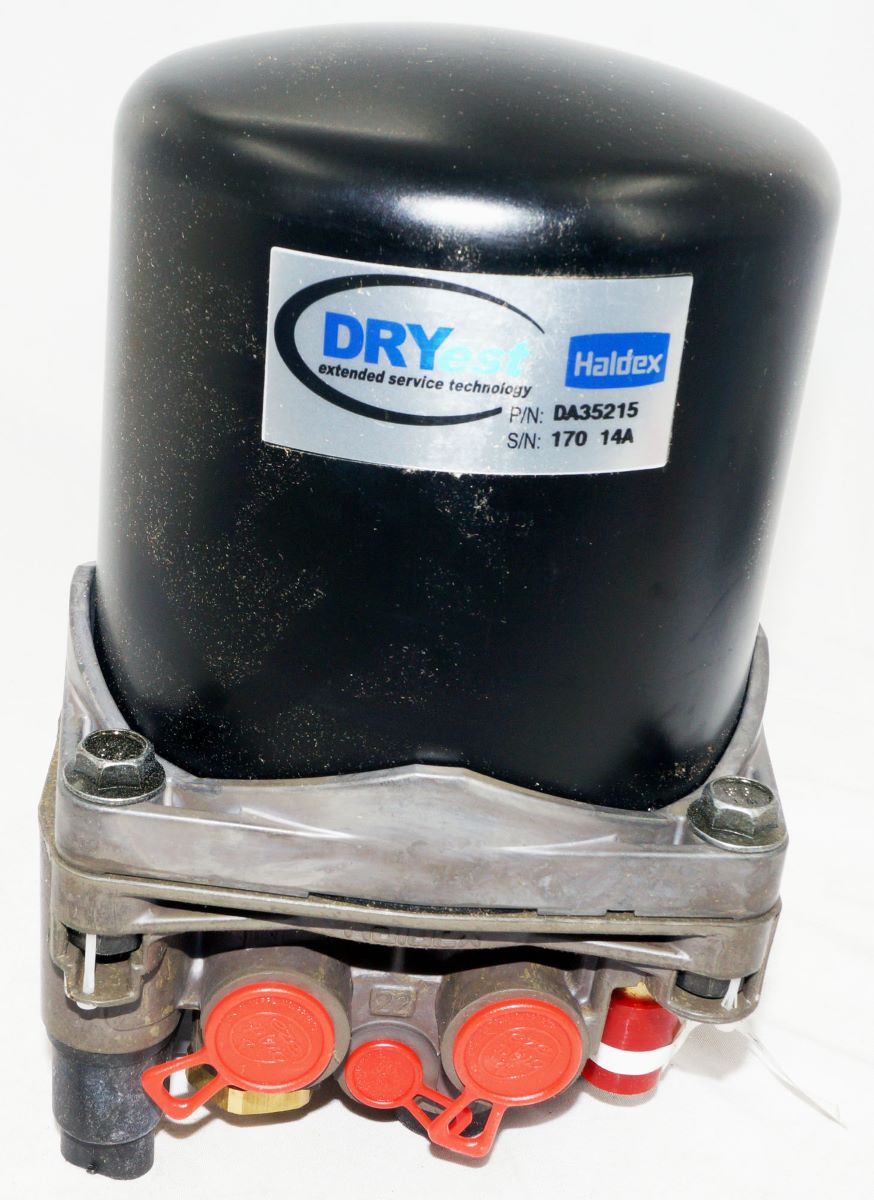

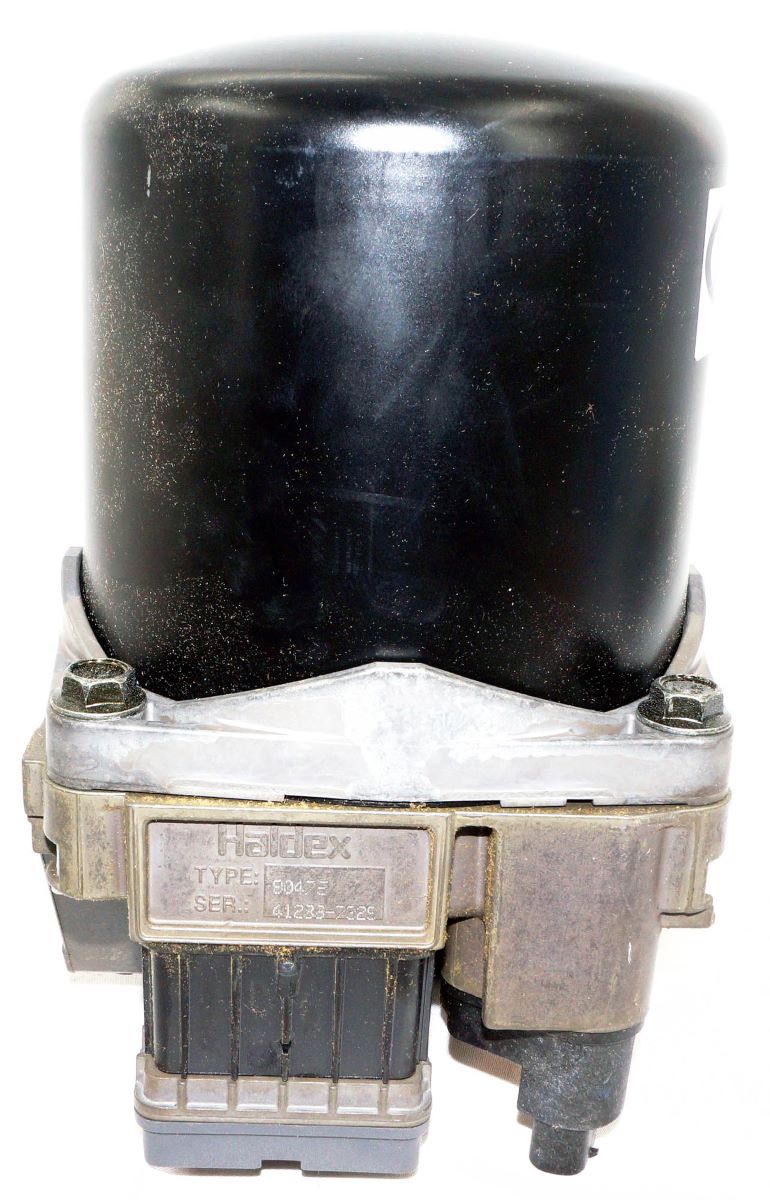

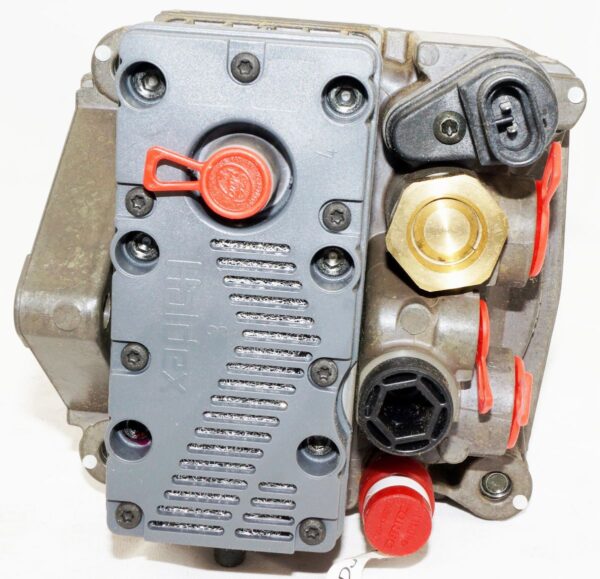

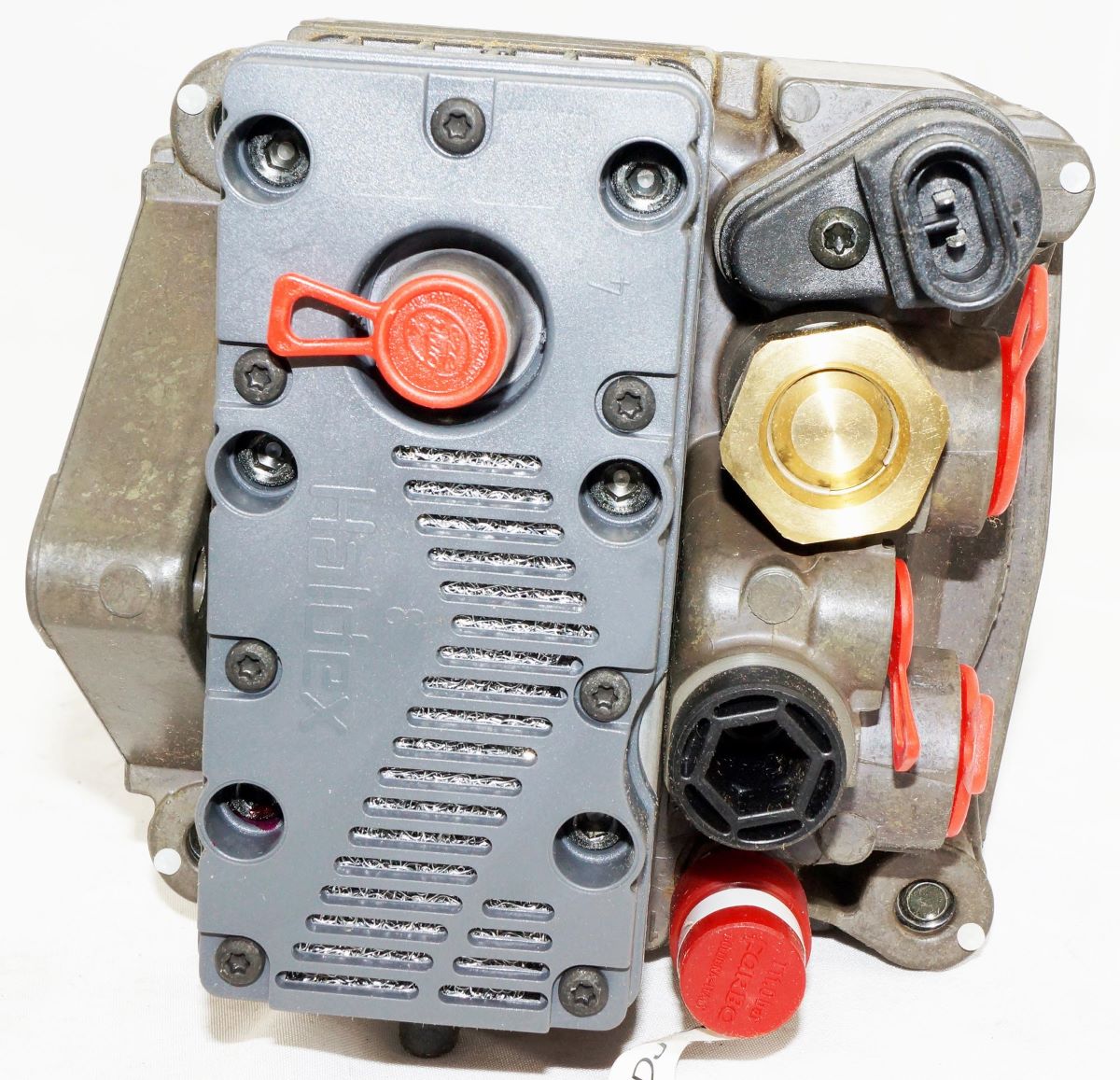

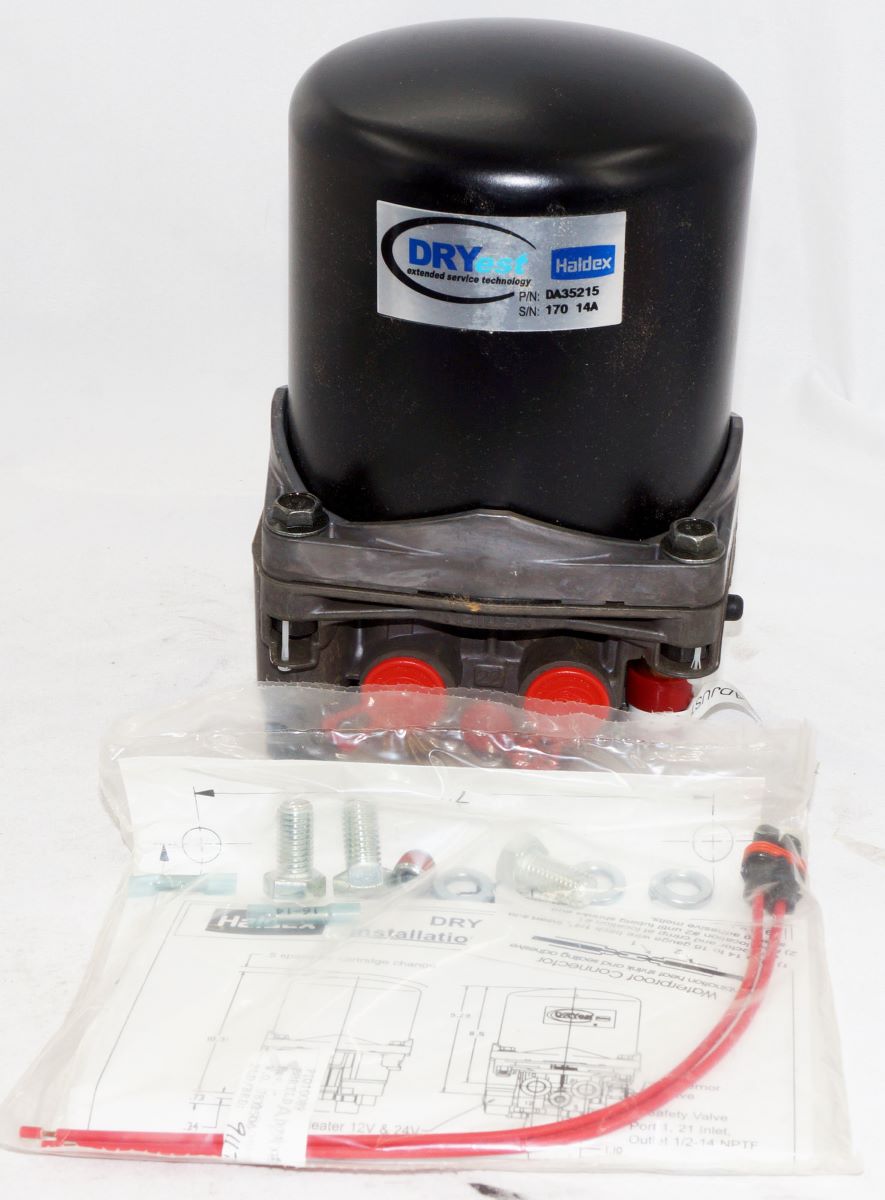

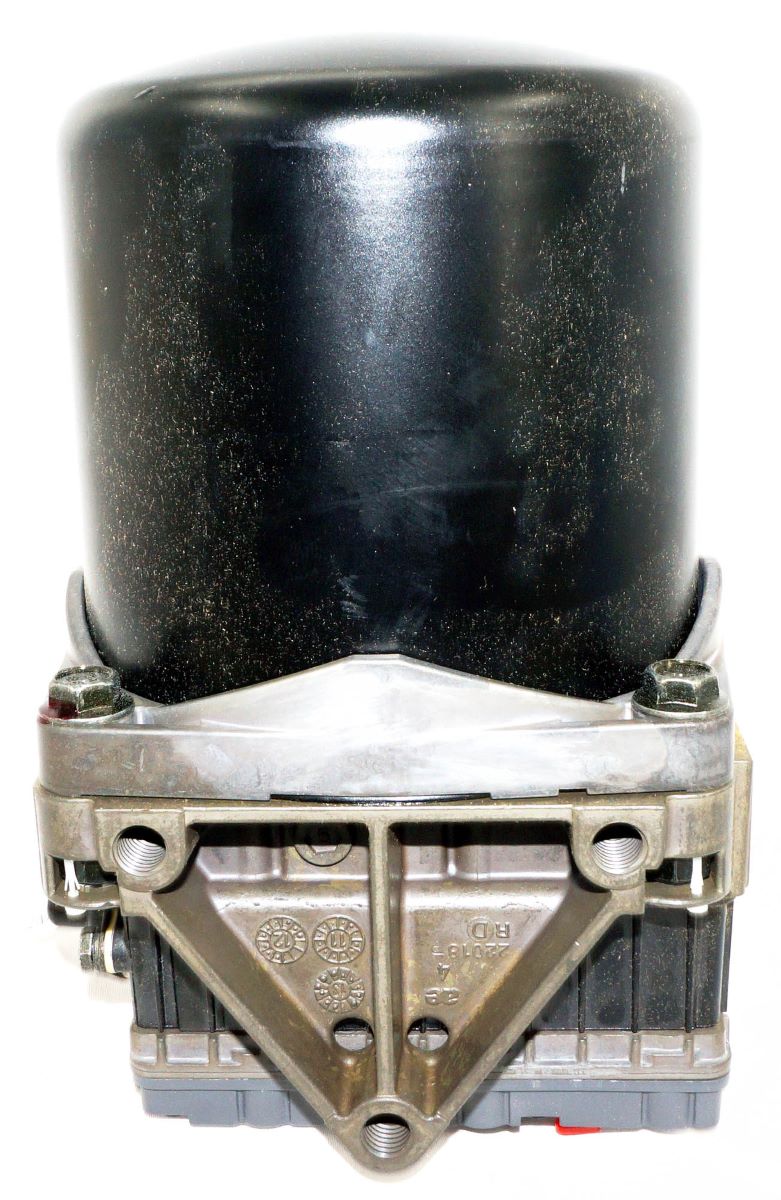

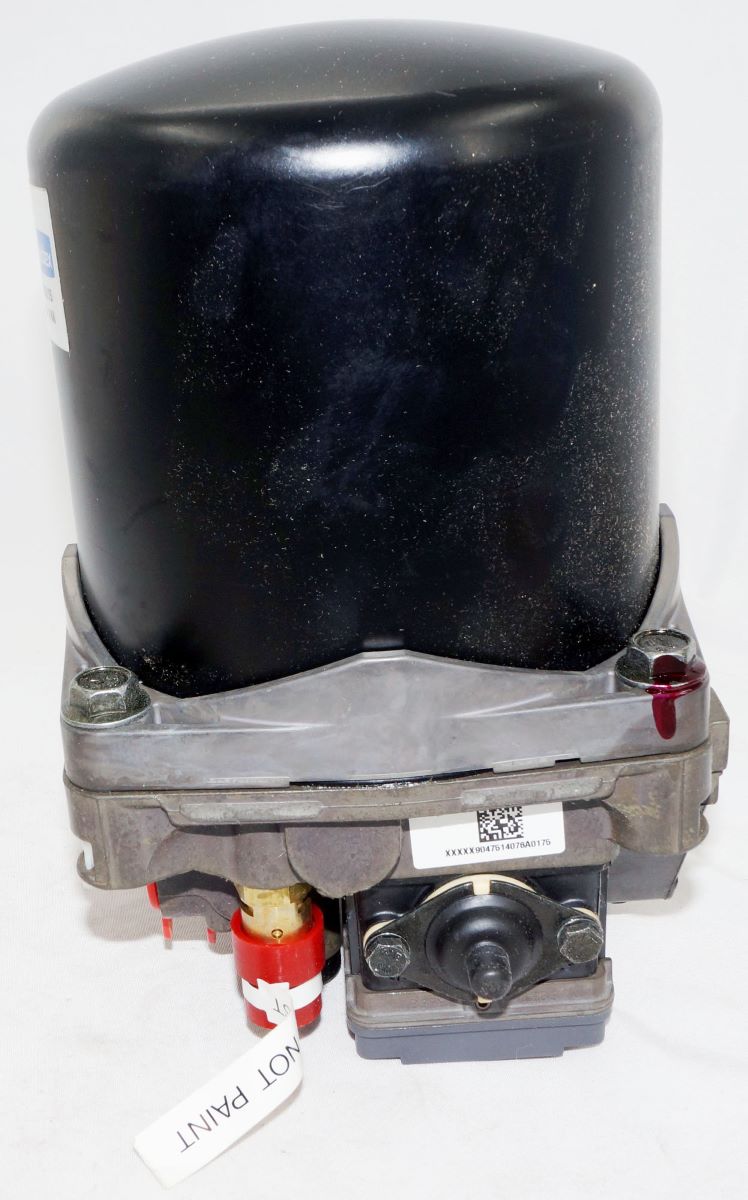

Haldex DA35215 Air Brake Dryer Valve with Heater

Spec
Description Air Dryer
Dessicant Cartridge Weight 3.5 lbs.
Drying Capacity 5.8 SCF
Drying Stages 5
Freight Class 70
Governor Cut-Out 125 ± 5 PSI
Governor Included Yes
Heater Included Yes
Heater Voltage 24V
Maximum Inlet Airflow 35 SCFM
Maximum Working Pressure 170 PSI
Maximum Working Temperature 170°F
Minimum Working Temperature -40°F
Mounting Bracket Included Yes
Notes For use With External Purge Tank
Pressure Drop 35 SCFM/175 PSI = 3 PSI
Regeneration Valve System Purge Drain Silencer
Safety Relief Pressure 150 PSI
Series DRYest
System Regeneration No
Turbo Protection 35 PSI Inlet Required
Wattage 90 Watts
