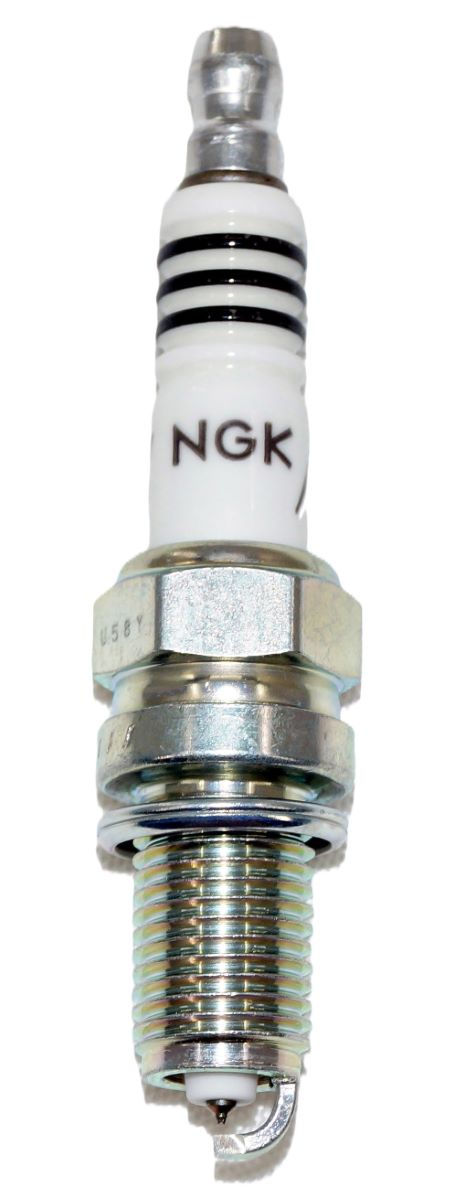

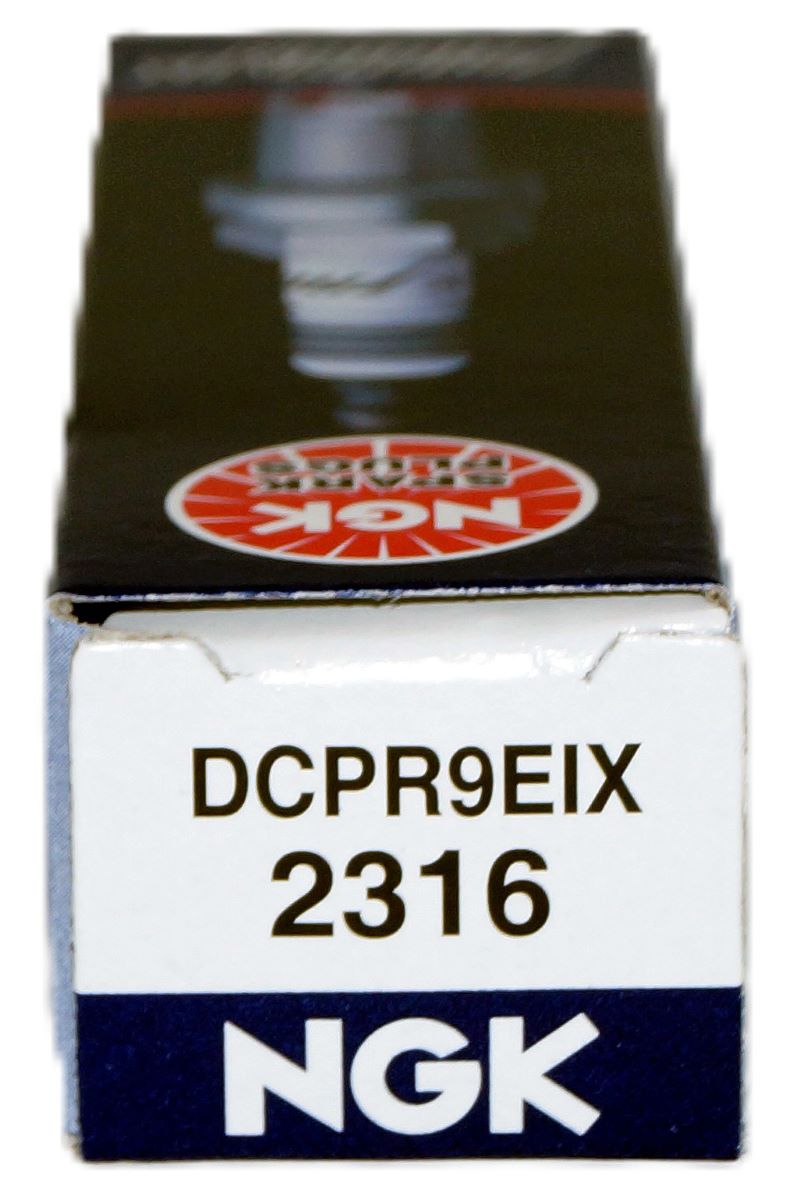

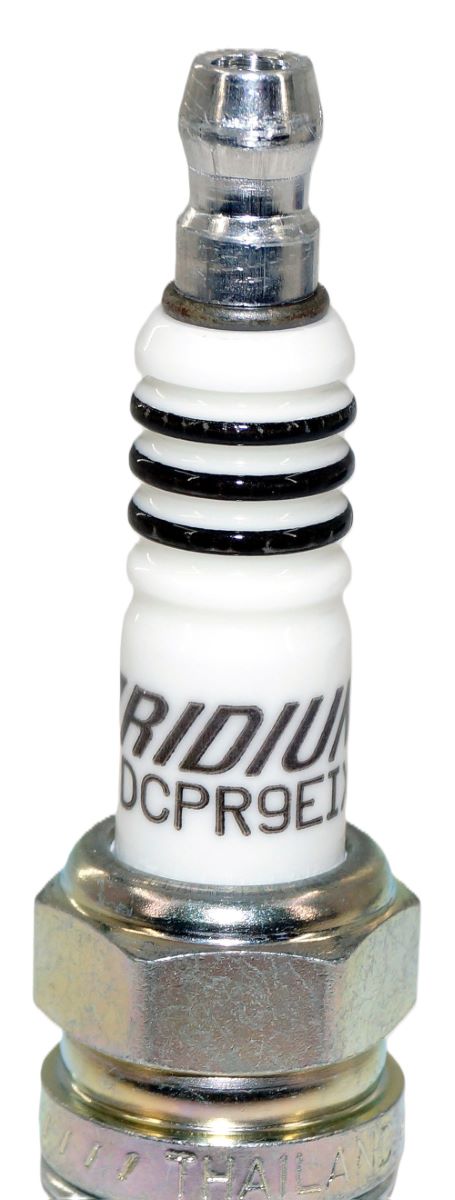

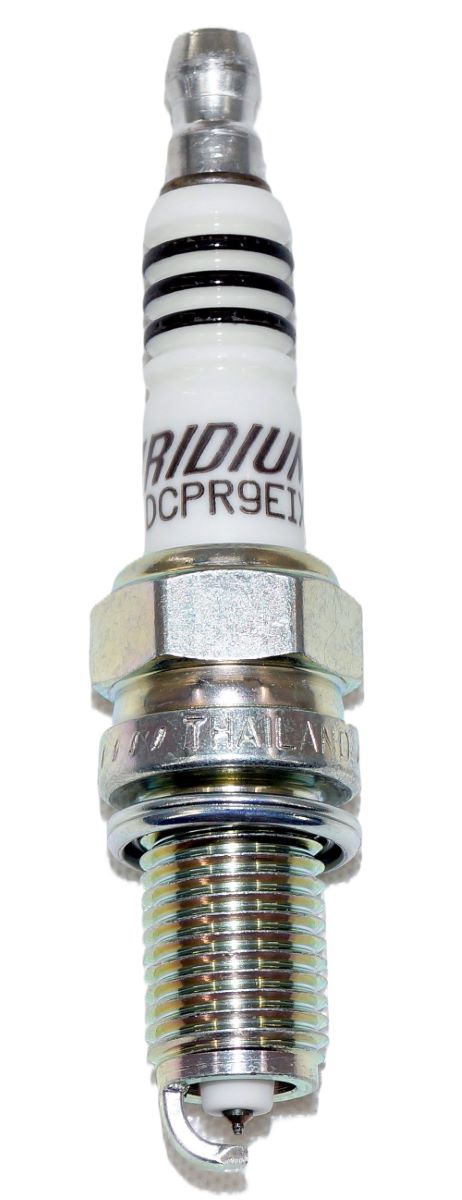

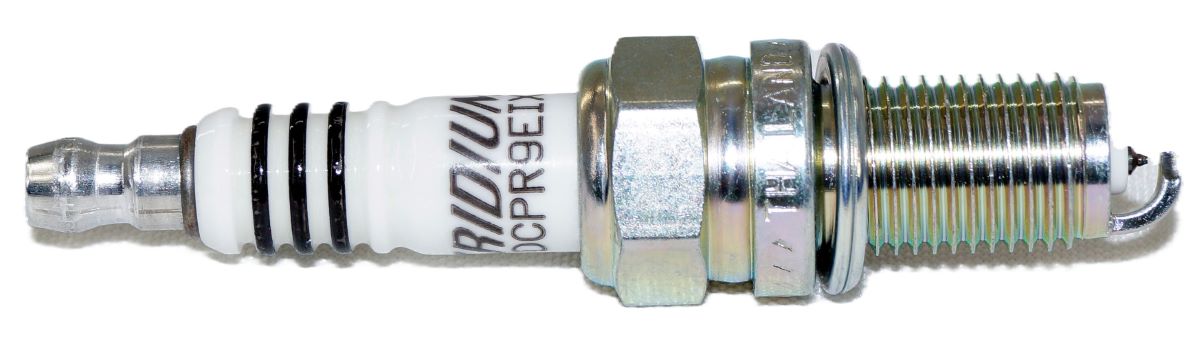

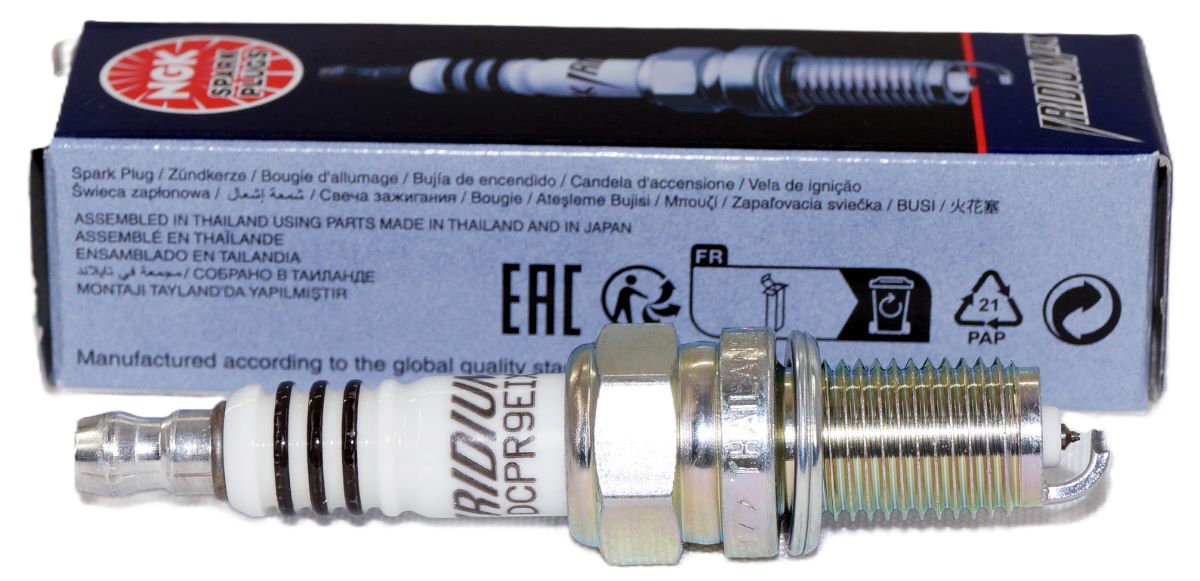

Genuine NGK 2316 Iridium IX Spark Plug DCPR9EIX

Genuine NGK 2316 Iridium IX Spark Plug DCPR9EIX
Genuine NGK 2316 Iridium IX Spark Plug DCPR9EIX - Image 2
Genuine NGK 2316 Iridium IX Spark Plug DCPR9EIX - Image 3
Genuine NGK 2316 Iridium IX Spark Plug DCPR9EIX - Image 4
Genuine NGK 2316 Iridium IX Spark Plug DCPR9EIX - Image 5
Genuine NGK 2316 Iridium IX Spark Plug DCPR9EIX - Image 6
Genuine NGK 2316 Iridium IX Spark Plug DCPR9EIX - Image 7
Genuine NGK 2316 Iridium IX Spark Plug DCPR9EIX - Image 8

$15.19

40 in stock

Part Number: DCPR9EIX
Stock Number: 2316
Material Grade: Iridium
Resistance (Ohms): 5000.0
Ground Electrode Tip Design: Taper Cut
Ground Configuration: J-Gap
Ground Electrode Core Material: Nickel
Washer Included: Yes
Grade Type: Performance
Electrical Terminal Type: Removable Nut
Center Electrode Core Material: Copper
Center Electrode Tip Material: Iridium
Pre-Gap Size (IN): .032
Pre-Gap Size (MM): 0.8
Ground Electrode Quantity: 1
Hex Size: 5/8" (16mm)
Insulator Height (IN): 2.01
Insulator Height (MM): 51.0
Manufacturer Heat Range: 9
Seat Type: Flat
Reach (IN): 0.750
Reach (MM): 19.0
Thread Diameter (IN): 0.472
Thread Diameter (MM): 12.0
Insulator Material: Ceramic
Resistor Type: Yes
Ground Electrode Tip Material: Nickel
Skirt: No
Center Electrode Insulator Tip Projection (IN): 0.12
Center Electrode Insulator Tip Projection (MM): 3.0
Center Electrode Design: Fine Wire
Washer Type: Crush
Center Electrode Projection: Mid Projection

Condition:
Brand: Brand: NGK
SKU SKU: 2316
Mfg Part #: 2316 DCPR9EIX

Description

SINGLE IRIDIUM TIP: Fine wire 0.6 millimeter iridium tip center electrode ensures high durability and a consistently stable spark
IRIDIUM ALLOY CENTER ELECTRODE: Iridium's density (6x that of platinum) and extremely high melting point is perfect for modern high efficiency engines
TAPERED CUT GROUND ELECTRODE: Reduced quenching design produces outstanding ignitability, improved acceleration, fuel efficiency and durability
SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
RECOMMENDED USAGE: Modified or high performance applications, or as an upgrade to OE nickel alloy spark plugs

Additional information

Weight .25 lbs
Brand

NGK
